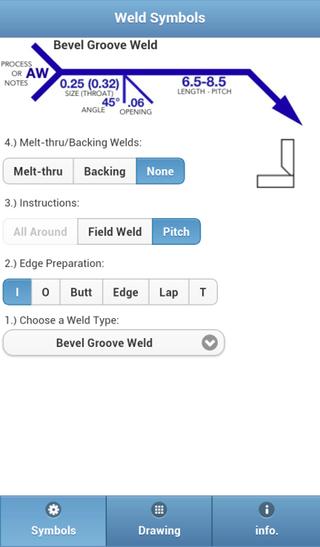

Weld Symbols is an App that lets you choose a weld symbol and see what the resulting weld will look like.

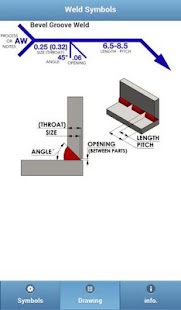

The App automatically generates dimensioned drawings with a “3D” view based on your input.The App is easy to use!
Weld Symbols is useful for Welders, Drafters, Designers, Engineers, Teachers & Students.
It is possible to generate, learn and communicate hundreds of weld scenarios using the Weld Symbols App.
There are 17 major “Weld Type” categories:Bevel Groove WeldFillet WeldFlange Corner WeldFlange Edge WeldFlare Bevel Groove WeldFlare V Groove WeldJ Groove WeldPlug WeldScarf Groove WeldSeam WeldSlot WeldSpot Projection WeldSquare Groove WeldStud WeldSurfacing WeldU Groove WeldV Groove Weld
There are 6 “Edge Preparation” sub categories:Inside CornerOutside CornerButt JointEdge JointLap Joint“T” Joint
https://andro.io/app/telaverus-weldsymbols
Power 100
Android app profile
Weld Symbols for Android – Latest Version & Features
★★★★★
(1584 ratings)
Rate this app
How do you feel about Weld Symbols?
Thanks for your feedback!
> 2.2k
Monthly Downloads
~$900
Estimated Cost
Screenshots
About Weld Symbols
Version History
Latest version
1.0
Price changed · $1 → $0
Price changed · $1 → $1
Price changed · $1 → $1
