When you select the motor rating, the cable and breaker sizes are automatically selected.Please use it as an aid in the design of electrical work.First, select the voltage of the target low-voltage three-phase squirrel-cage induction motor.Then select the motor capacity (kW).Then, the following information will be output to the list.・ Motor rated current・ Motor starting current・ Thermal rating-Cable size for direct connection (or star delta primary side)・ Cable size on the secondary side of Star Delta・ Circuit breaker rating* Compatible with top runner motors.* If the wiring distance is long, select a size larger than the displayed cable size in consideration of the voltage drop.
https://andro.io/app/sentei
Rate this app
How do you feel about ケーブル，ブレーカー サイズ選定！?
Thanks for your feedback!
> 2.2k
Monthly Downloads
~$900
Estimated Cost

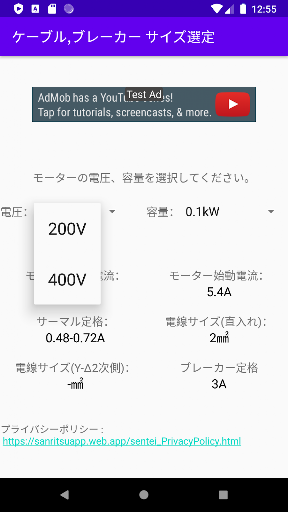

Screenshots
